WSC-4SP Arm Clamp for use with Used Platens


This has a BOLT that has the head milled down to fit SMALLER Square Holes typical of USED, GENERIC Platens.  MEASURE the hole size of your Platen, top AND bottom, as usually their are severely worn at top edge.

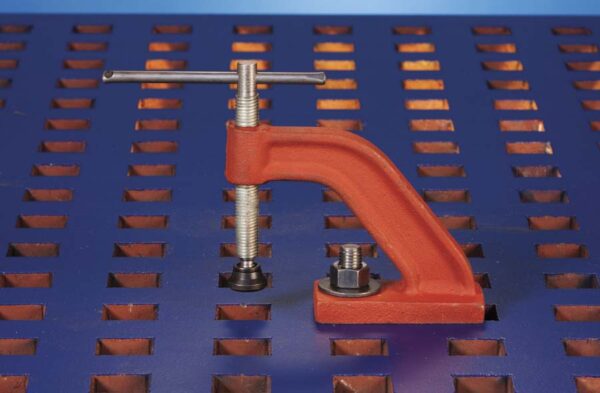

FOR USED PLATENS. This is a vertical clamp that bolts down to the Platen surface. Body of clamp is made of ductile iron. Includes 1 each WS8SP Bolt, nut and washer for attaching clamp to Platen. Throat is 3 inches and clamping envelope is 3 inches.

Additional information

Weight 7.5 lbs
Dimensions 10.8 x 10.8 x 4 in
