5 ft x 5 ft Bundle, consists of WSC-55B Platen and WSC-55BNS Steel Stand

$6,130.00

WSC-55B Platen 5 ft. x 5 ft.

$4,900.00

WSC-55BNS Steel Stand for 5 ft. x 5 ft. Platen

$1,230.00

Description

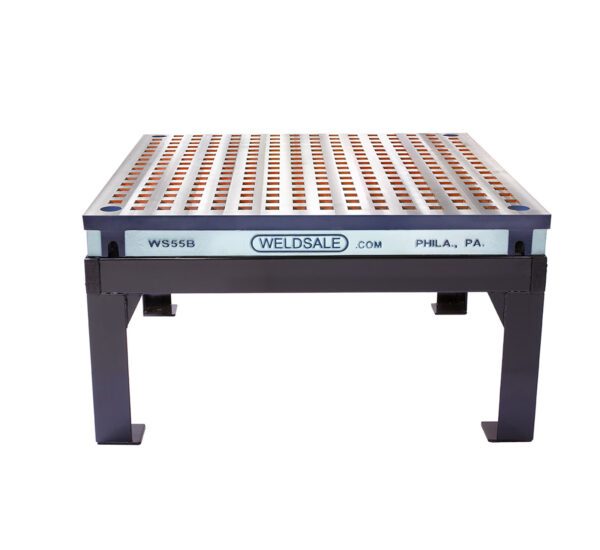

This bundle consists of Weldsale 5 ft x 5 ft Platen and 5 ft x 5 ft Steel Stand. This includes the Part Numbers: WSC-55B and WSC-55BNS, respectively.

The overall height of Platens and Stand will be 32 inches, from floor to top of Platen. Custom heights are available at higher prices and longer lead times. Leveling pads will increase this height!

The Platen is made of high tensile strength Cast Iron, and measures 60” x 60” x 5.5” overall height, and is 2.5” thick as measure through the square hole. The Platen is Cross Ribbed on the underside for added strength.

The Steel Stand is fully welded of Structural steel tubing and angle iron. This Stand has 4 legs. The Stand is slightly smaller than the Platen so it will not interfere if you wish to bolt two or more Platens together. Platen will bolt to the Stand. We include 4 each 1” dia. bolts, nuts, and washers with this Bundle.

Please specify both part numbers, if you choose to send in a Purchase Order.
